This article examines the manufacturing process for a 304 stainless steel threaded fitting used in cold-water piping and pipe-adapter applications. The component has a hexagonal outside profile and a precision M20 x 1.5 internal thread.
The following sections explain the complete process, from material selection and structural analysis to CNC turning, cleaning, inspection, packaging, and cost optimization. The goal is to achieve reliable thread quality and consistent dimensions while minimizing machining time, material waste, and avoidable handling damage.
1. Product Structure and Technical Requirements
The fitting has a simple external appearance, but its internal thread and compact geometry require controlled machining and inspection.
| Item | Requirement |
| Material | SUS304 stainless steel |
| External shape | Hexagonal body |
| Nominal dimensions | 22 mm across flats and 14 mm finished height |
| Internal thread | M20 x 1.5 |
| Main machined features | Hex body, internal bore, precision internal thread, end faces, thread relief, and chamfers |
Editorial check before publishing: The source text specifies a finished height of 14 mm, while one CAD illustration includes a 17.000 mm dimension. Confirm the correct finished height against the approved drawing and update the article if necessary.
SUS304 provides good corrosion resistance for general water-service applications and is widely available as standard bar stock. However, stainless steel can work-harden if the cutting edge rubs rather than cuts. Stable workholding, sharp tools, positive feed, and suitable coolant are therefore important throughout production.

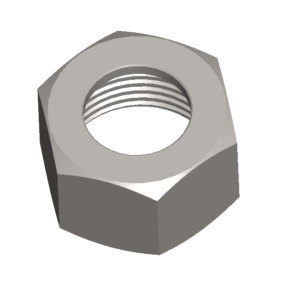

Figure 1. Three-dimensional model of the SUS304 hex fitting with an M20 x 1.5 internal thread.
2. Main Manufacturing Challenges
2.1 Hexagonal External Profile
Because the component has a standard hexagonal body, hex bar is the preferred starting material. A suitable hex bar already provides the required outside profile, so there is no need to machine the six external flats from round stock.
This choice provides several benefits:
- Less material must be removed.
- Material utilization is improved.
- Cycle time is reduced.
- Tool consumption is lower.
- The manufacturing route becomes simpler and more economical.
2.2 M20 x 1.5 Internal Thread
The internal M20 x 1.5 thread is the main functional feature. The process must control thread size, pitch, profile, surface condition, and assembly performance.
The thread is well suited to CNC turning because the component is rotationally symmetric around its bore. A CNC lathe can perform facing, drilling, boring, relief-groove machining, chamfering, and internal threading in controlled sequence.
Thread quality depends on the accuracy of the prepared bore. The minor diameter, bore straightness, entry chamfer, and runout space all influence tool loading and the final thread form. The internal thread should be verified with the specified GO/NO-GO plug gauge rather than by visual inspection alone.

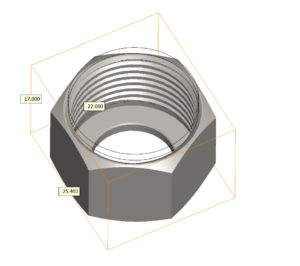

Figure 2. CAD dimensional reference view. Confirm all production dimensions against the approved engineering drawing.
3. Recommended Manufacturing Route
The recommended process flow is:
- Prepare the SUS304 hex-bar material.
- Perform the first CNC turning setup on the front face.
- Reverse the part and perform the second CNC turning setup.
- Ultrasonically clean and degrease the finished parts.
- Inspect appearance and dimensions.
- Inspect the M20 x 1.5 internal thread.
- Place accepted parts in protective packaging.
- Complete the final quality review and release the shipment.
Using two turning setups allows the internal thread and primary datum face to be completed first, followed by accurate control of the final component height and the opposite face.
4. CNC Turning Process
4.1 First Setup: Front-Side Machining
Clamp the SUS304 hex-bar blank securely while protecting the hex flats from unnecessary marks. The first setup establishes the primary end face, internal bore, and M20 x 1.5 thread.
The recommended sequence is:
- Face the front end.Produce a flat and stable datum surface.
- Spot and drill the center.Establish the hole position and prepare for internal machining.
- Rough-machine the thread bore.Leave approximately 0.2 mm of finishing allowance.
- Finish the bore.Achieve the required base diameter and surface condition for threading.
- Cut the M20 x 1.5 internal thread.Use a suitable internal-threading tool and a stable CNC threading cycle.
- Machine the thread relief groove.Provide sufficient runout space so the threading tool can exit correctly.
- Chamfer the thread entrance.Remove the sharp edge and improve assembly.
- Protect the semi-finished part.Place it in a dedicated thermoformed tray to prevent scratches and impacts.
The internal threading tool must have sufficient clearance inside the bore. Cutting parameters should be selected according to the insert manufacturer’s recommendations, machine rigidity, coolant delivery, and actual trial results. Avoid dwelling inside the bore because rubbing can increase heat and work hardening.
4.2 Second Setup: Reverse-Side Machining
After completing the front side, reverse and reclamp the component. Locate the part from the previously machined surfaces so the finished height and second end face remain consistent.
The second setup includes:
- Finish the overall height to 14 mm.
- Finish the reverse end face.Maintain the required length and face quality.
- Machine the external chamfers.Improve appearance, remove sharp edges, and make the fitting safer to handle.
Use controlled clamping force during the reverse setup. Excessive force or hard jaw contact can mark the hex flats or distort a thin section. Finished parts should be returned to protective trays immediately after machining.

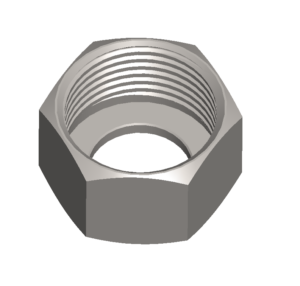

Figure 3. Reverse-side view showing the finished end face, chamfer, bore, and internal thread.
5. Cleaning and Quality Control
5.1 Ultrasonic Cleaning
After machining, place the parts in an ultrasonic cleaning system to remove cutting oil, fine metal chips, and surface contamination.
The cleaning process should reach the internal thread, relief groove, chamfers, and bore. After cleaning, rinse and dry the components according to the approved production method. No visible chips, oil, cleaning residue, or other contaminants should remain.
5.2 Appearance Inspection
Inspect every part for:
- Scratches
- Impact marks
- Clamp marks
- Burrs
- Damaged chamfers
- Incomplete or visibly damaged thread crests
- Residual oil or chips
The hex flats and end faces are visible surfaces and should remain clean and free from unnecessary handling damage.
5.3 Dimensional Inspection
Confirm the overall height, hex dimensions, bore size, chamfers, end-face condition, and other drawing-controlled features with suitable measuring equipment.
The approved engineering drawing must remain the controlling source for production dimensions and tolerances. CAD illustrations in this article are visual references and should not replace the released drawing.
5.4 Internal-Thread Inspection
Inspect the M20 x 1.5 internal thread with the specified GO/NO-GO thread plug gauge:
- The GO gauge should enter to the required depth without excessive force.
- The NO-GO gauge must not exceed the permitted engagement.
Also inspect the entrance chamfer, thread relief, and visible thread profile. Reject or route for approved disposition any part with torn threads, burrs, incomplete thread form, or unacceptable gauge performance.
5.5 Packaging Inspection
Use dedicated thermoformed trays or separated protective packaging. Parts should not contact one another during storage or transportation.
Before shipment, confirm that:
- Only accepted parts are packed.
- The components are clean and dry.
- The internal threads are protected from debris and impact.
- The packaging prevents movement and metal-to-metal contact.
6. Cost Optimization
6.1 Why Not Use Standard Round Bar?
The product has a 22 mm across-flats hexagonal profile, and standard hex-bar sizes are readily available. Starting from round bar would require additional machining to create the six flats or would require a separate milling operation.
Using hex bar reduces external machining, improves material utilization, shortens cycle time, and lowers the total manufacturing cost.
6.2 Potential Use of Hollow Hex Bar
For higher production volumes, discuss hollow hex bar or hexagonal tube with a preformed central hole with the material supplier.
This material option can provide the following benefits:
- Less raw material must be removed.
- Drilling and rough-boring time can be reduced.
- Tool wear can be lower.
- Chip volume and coolant contamination can be reduced.
- Batch-production economics can improve.
The hollow-stock option must be evaluated carefully before adoption. The internal size, wall thickness, straightness, material condition, availability, minimum order quantity, and purchase price must support the finished drawing requirements.
7. Frequently Asked Questions
Why is SUS304 suitable for this fitting?
SUS304 offers useful corrosion resistance, availability, and general mechanical performance for many water-service components. The final material selection should always follow the product specification and the actual operating environment.
Why is a CNC lathe used for a hexagonal part?
Although the outside is hexagonal, the bore, end faces, chamfers, relief groove, and internal thread are rotational features. Starting from hex bar preserves the external profile, while the CNC lathe efficiently produces the internal and end-face features.
Why leave approximately 0.2 mm for bore finishing?
The finishing allowance allows the rough-machined bore to be corrected to the required thread-preparation diameter and surface condition before threading. The exact allowance should be validated for the chosen tool, stock condition, machine, and tolerance.
How is the M20 x 1.5 internal thread inspected?
Use the specified GO/NO-GO thread plug gauge and follow the drawing or inspection standard. Visual inspection alone cannot confirm functional thread size.
Can the process be completed in one setup?
The internal bore and thread can be completed from the front, but the opposite end still requires machining to control the final 14 mm height, reverse face, and external chamfers. A second setup therefore provides a practical and controlled process.
Is there additional room to reduce cost?
Yes. The main opportunity is to use hollow hex stock or material with a preformed central hole. This can reduce drilling time, material removal, chip volume, and tool wear, especially in high-volume production.
Conclusion
For this SUS304 cold-water pipe fitting with an M20 x 1.5 internal thread, the combination of standard hex bar and two CNC turning setups provides a practical balance of dimensional control, thread quality, production efficiency, and manufacturing cost.
The first setup establishes the primary face, bore, thread relief, entry chamfer, and precision internal thread. The second setup controls the final height, reverse face, and external chamfers. Ultrasonic cleaning, appearance inspection, dimensional checks, thread gauging, and protective packaging complete the process.
For larger production runs, hollow hex bar or hexagonal material with a preformed bore may offer further savings. Any alternative material form should be validated against the approved drawing, machining process, supply conditions, and total cost before production release.
