Custom CNC machining for drone and UAV frame components balances weight and rigidity by removing material only where stress is low, keeping stiffening ribs where load is high, and choosing alloys or composites that match the flight regime. Ultra-lightweight carbon fiber plates, titanium fasteners, and thin-walled aluminum motor mounts work best when pocketing, wall thickness, and fastener layout are validated with FEA and real flight tests.
Last updated:
What Is the Best Weight-to-Rigidity Strategy?
The best strategy is to treat the frame as a load path, not a solid block. Remove material in low-stress zones, keep stiffening ribs and thicker sections near motors and arms, and use high-strength alloys where torque peaks. This approach keeps mass low while maintaining the rigidity needed for stable flight.
In practice, I look for continuous load paths from the motor mounts through the arms to the center plate. When those paths are clear, the design tolerates aggressive maneuvers without excessive vibration or flex. That is why custom UAV components often use topology-guided pocketing instead of uniform thinning.
How Should Carbon Fiber Plates Be Milled?
Carbon fiber plates should be milled with sharp, diamond-coated tools, low feed per tooth, and controlled depths of cut to avoid delamination. The goal is clean edges without fraying the outer plies, because surface damage weakens the part and can initiate cracks under repeated flight loads.
I usually machine carbon fiber in multiple shallow passes rather than one deep cut, and I keep the table firmly clamped to prevent vibration. For lightweight structural milling, the edge finish often matters more than raw speed, because a clean edge preserves the laminate’s strength.
Carbon fiber milling parameters
These settings are starting points. For drone frame machining, 6CProto refines them based on ply orientation, resin type, and the required edge quality.
Which Materials Work Best for UAV Frames?
Aluminum alloys like 7075-T6 and 6061-T6 are common for motor mounts and arms because they offer high strength and good machinability. Carbon fiber is ideal for center plates and top/bottom skins where stiffness-to-weight is critical. Titanium fasteners are often used at high-stress connection points to reduce weight without sacrificing clamp load.
The best material mix depends on the mission. Racing drones benefit from carbon fiber and titanium, while heavy-lift industrial UAVs may lean more on aluminum for cost and toughness. In custom CNC machining for drone and UAV frame components, I usually recommend a hybrid approach: carbon for global stiffness, aluminum for local strength, and titanium where fatigue is a concern.
Why Does Pocketing Affect Structural Integrity?
Pocketing reduces weight by removing material, but it also changes how stress flows through the part. If pockets are too deep or ribs are too thin, the frame can flex under high torque or crash loads. FEA simulations show which areas can be safely thinned and which must remain thick to preserve rigidity.
The key is to keep load paths continuous and avoid sharp corners that concentrate stress. In production, I validate pocketing with both simulation and physical testing. That combination catches issues like local buckling or vibration modes that a static FEA might miss.

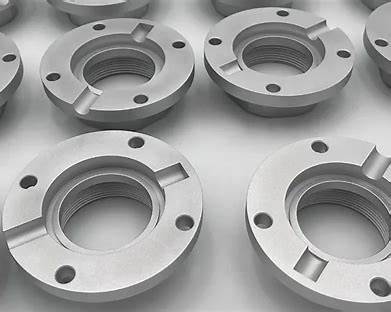

How Do Thin-Walled Motor Mounts Behave?
Thin-walled motor mounts reduce weight but are prone to deformation if walls are too thin or if fastener torque is too high. The best designs keep wall thickness just above the minimum required for clamping and add local bosses where motors attach.
I usually reinforce motor mounts with gussets or thicker pads at screw locations. This prevents the wall from bulging or cracking under vibration and torque. In flight, a well-designed thin-walled mount stays rigid enough to keep motor alignment tight, which is critical for stable flight and motor life.
What Role Does FEA Play in Design?
FEA reveals where stress concentrates, where material can be removed, and how the frame behaves under realistic flight loads. It shows hotspot areas that uniform thinning would weaken and helps guide pocketing patterns that maintain stiffness.
For lightweight structural milling, FEA is most useful when it includes dynamic loads, not just static weight. A frame that looks fine under static compression may vibrate badly under high RPM or rapid directional changes. That is why simulation should always be paired with real-world testing.
Can You Machine Titanium Fasteners In-House?
Yes, titanium fasteners can be machined in-house with proper tooling, speeds, and coolant. Titanium is tough and work-hardens easily, so it requires sharp tools, moderate speeds, and consistent feed to avoid galling or tool wear.
At 6CProto, we often machine titanium fasteners alongside aluminum and carbon parts to ensure tolerances and surface finish match the rest of the UAV assembly. This integration reduces fit issues and ensures consistent clamping across the frame.
How Do You Optimize for Flight Loads?
Optimizing for flight loads means designing for torque, vibration, and impact, not just static weight. The motor mounts must handle high RPM torque, the arms must resist bending during acceleration, and the center plate must stay flat under load.
I use a mix of FEA, material selection, and strategic stiffening to achieve this. The result is a frame that is light but does not flex excessively during aggressive maneuvers. That balance is the core of custom CNC machining for drone and UAV frame components.
Why Is Tolerance Control Important?
Tolerance control ensures that motor mounts, arms, and center plates assemble without gaps or misalignment. Poor tolerances can cause vibration, uneven load distribution, and premature failure. For UAVs, even small misalignments can affect flight stability.
I typically hold critical mounting surfaces to ±0.05 mm or tighter, especially where motors and electronics attach. This level of precision is achievable with CNC machining and ensures repeatable performance across multiple units. 6CProto uses advanced CMM inspections to verify these tolerances consistently.
What Are Common Machining Mistakes?
Common mistakes include over-pocketing, using wrong tooling for carbon fiber, and ignoring fastener torque in thin-walled areas. Over-pocketing weakens the frame, while dull or inappropriate tools damage carbon plies. Ignoring torque can deform thin walls and ruin alignment.
In my experience, the easiest fix is to validate the design early with DFM feedback and a prototype run. That catches issues before production and reduces costly rework. This is where 6CProto’s free DFM analysis adds real value for drone builders.
Which Design Choices Improve Flight Performance?
Design choices that improve flight performance include continuous load paths, strategic ribbing, proper material selection, and tight tolerances on motor mounts. These features reduce flex, vibration, and weight, leading to more stable and efficient flight.
I also recommend keeping electronics mounting surfaces flat and vibration-damped. A well-designed frame reduces noise in sensor data and improves flight controller performance. That is why custom UAV components often combine structural and electronic integration in one design.
6CProto Expert Views
“The biggest mistake we see in drone frames is treating weight reduction as a uniform thinning exercise. Real performance comes from removing material where stress is low and reinforcing where torque and vibration peak. At 6CProto, we combine lightweight pocketing with FEA validation and real flight testing to ensure the frame stays rigid under load. That balance is what makes custom CNC machining for drone and UAV frame components effective.”
Weight Against Rigidity Is a Geometry Problem
The weight-versus-rigidity decision on a frame is not made by choosing a better material; it is made by moving material to where the load path wants it. The shop’s own notes on drone machining make the scale of that clear: taking a wall down from 2 mm to 1 mm in a pocket changes both the part’s stiffness and its machining behaviour, and a rib added to a thin plate changes where the vibration modes sit. Those are millimetre-level decisions with structural consequences, which is why the drawing and the FEA model have to agree before the first plate is cut.
Three habits keep the two from drifting apart. Pocket depth and wall thickness are specified as a matched pair, because a pocket that saves grams in one direction removes stiffness in the other; ribs are used to restore stiffness rather than to add material thickness everywhere, since a rib raises the section at the cost of one more toolpath; and motor mounts are treated as a separate tolerance problem from the frame, because their accuracy sets the vibration signature and the flight controller’s job becomes harder on a frame that is light but imprecise. The machining consequences of those choices are set out in the shop’s guide to CNC machining drone parts.
The Part of the Frame That Is Not in the Model
On a thin, pocketed frame the limiting factor is often not the design but the process holding it: heat, fixturing and tool wear move a machined part away from the model as the run goes on, and thin walls amplify all three. That is the mechanism behind parts drifting out of tolerance, and it is worth designing the inspection around it rather than discovering it in a flight test. Ask for the FEA assumptions that set the wall thickness, a first-article inspection report covering the motor-mount holes and the frame datums, and the trend data from the run if the batch is more than a handful — a record of the measured feature across the batch says more about process stability than a single good part.
Why Choose 6CProto?
6CProto is a strong fit for drone and UAV frame projects because we handle CNC machining, rapid prototyping, and inspection under one roof. This integration ensures that carbon fiber plates, aluminum motor mounts, and titanium fasteners all meet tight tolerances and assemble cleanly.
Our free DFM analysis helps optimize designs for lightweight structural milling before any metal is cut. With ISO 9001:2015 certification and CMM inspections, we ensure every component meets exact tolerances. For drone builders, 6CProto offers the speed and technical excellence needed to move from concept to flight-ready hardware.
Conclusion
Custom CNC machining for drone and UAV frame components succeeds when weight and rigidity are balanced through strategic material removal, proper material selection, and validation with FEA and flight tests. Ultra-lightweight carbon fiber plates, titanium fasteners, and thin-walled aluminum motor mounts work best when pocketing, wall thickness, and fastener layout are optimized for real flight loads.
The most practical approach is to design for load paths, validate with simulation, and refine with prototypes. For drone builders, that is the difference between a frame that looks light and one that performs reliably under stress. 6CProto helps turn that approach into repeatable, high-performance UAV hardware.
FAQ
What is the best weight-to-rigidity strategy for a drone frame?
Spend material along the load path and remove it everywhere else. In practice that means specifying pocket depth and wall thickness together, using ribs to restore stiffness locally instead of thickening a whole plate, and keeping the motor mounts accurate rather than merely light, because their precision sets the vibration behaviour the flight controller has to live with.
Which materials work best for UAV frames?
Aluminium and carbon fibre cover most of the market, with titanium reserved for fittings where strength and corrosion resistance justify the machining cost. Aluminium gives the best balance of machinability, cost and stiffness for milled frames and plates; carbon fibre gives the better stiffness-to-weight where the geometry can be a laminate rather than a machined solid.
Why does pocketing affect structural integrity?
Because a pocket removes material from exactly the section that carries the bending load. Taking a wall from 2 mm to 1 mm halves the section, which changes both the stiffness and the way the part behaves under load and during machining. The fix is not to avoid pocketing, it is to pocket deliberately and check the result against the load case.
Why do machined frames drift out of tolerance during a run?
Heat, fixturing and tool wear, and thin walls amplify all three. As the tool dulls, cutting forces rise and the wall deflects further; as the machine and the part warm up, the geometry moves; and a fixture that was adequate for a solid plate may not hold a pocketed one. Measuring the critical feature across the batch is how the drift is caught before it reaches a flight test.
What should I ask for with a machined drone frame?
The FEA assumptions the wall thickness was set from, a first-article inspection report covering the motor-mount holes and the frame datums, the material certificate for the plate, and the measured trend for the critical features if the batch is larger than a few pieces. Those four documents are what let you tell a light frame apart from a light and repeatable one.
