The Ultimate Guide to Injection Molding: Process, Types, Advantages & Applications

Injection molding is one of the most widely used manufacturing processes in modern industry. By heating raw materials until they melt and injecting them into a precisely engineered mold cavity, manufacturers can produce parts with complex shapes, high precision, and consistent quality. This process is highly versatile, accommodating a wide range of materials including thermoplastics, thermosets, silicone, and even metal powders through Metal Injection Molding (MIM).

This process is the backbone of mass production in industries ranging from consumer electronics to automotive, medical devices, and packaging. Its ability to create consistent, durable, and intricate parts makes it indispensable in today’s manufacturing landscape. Even everyday objects like smartphone cases, bottle caps, or kitchen utensils often owe their existence to this technology.

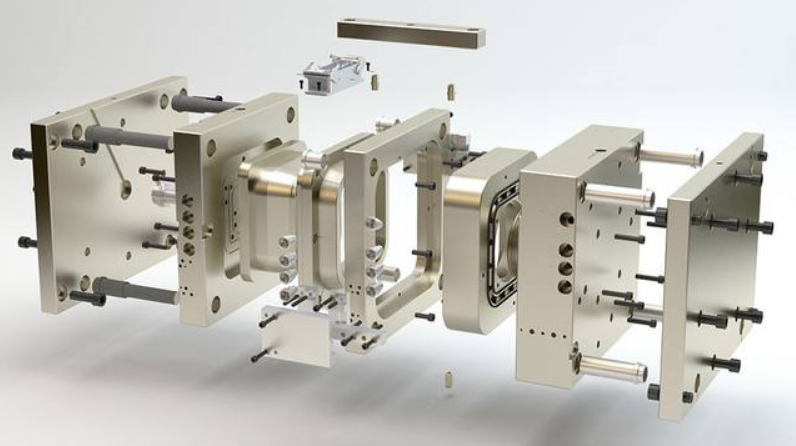

At its core, injection molding requires two key elements: the injection molding machine and the mold.

1. Material Preparation –Drying, coloring, or mixing with additives for specific properties like UV resistance, flame retardancy, or mechanical strength.

3. Cooling – Material solidifies. Advanced molds use complex cooling channels to reduce cycle time and maintain dimensional accuracy.

4. Cooling – The part solidifies inside the mold. Cooling time depends on material properties, part thickness, and mold design. Advanced molds often incorporate complex cooling channels to reduce cycle times and improve dimensional accuracy.

5. Ejection – Once solidified, the part is ejected from the mold using pins, plates, or air blasts. Proper ejection prevents damage to the part and the mold.

6. Post-processing – After ejection, parts may require trimming, surface finishing, or assembly. Some products may undergo secondary processes like painting, overmolding to achieve desired functionality and aesthetics.

There isn’t just one way to perform injection molding. Depending on the material, design complexity, and intended application, manufacturers rely on different molding techniques to achieve the desired results. The most common types include:

This is the most widely used method. Thermoplastic resins are melted, injected into a mold, and solidify upon cooling. Since the material can be reheated and reprocessed, it is ideal for mass production of consumer goods, automotive parts, and electronic housings.

Applications: smartphone cases, dashboards, appliance components.

Unlike thermoplastics, thermoset materials undergo a chemical change during molding. Once hardened, they cannot be melted again. This makes them suitable for high-heat and electrical insulation applications.

Applications: circuit breakers, electrical switches, kitchenware handles.

In this process, pre-formed components such as metal screws, pins, or threaded inserts are placed into the mold before injection. The plastic encapsulates the insert, creating a single, durable part.

Applications: automotive fasteners, surgical instruments, threaded housings.

Overmolding involves molding one material over another, usually a softer material over a rigid substrate. This enhances grip, comfort, and product aesthetics.

Applications: toothbrush handles, power tool grips, medical devices.

MIM combines metal powders with binders to form a feedstock that is injected into molds. After injection, the binder is removed and the part is sintered to achieve high density and strength, similar to wrought metals.

Applications: gears, surgical instruments, aerospace components.

Factors Affecting Injection Molding Quality: Several key factors influence the quality and consistency of injection-molded parts.

1.Material Properties – Different polymers have varying melt flow, shrinkage rates, and thermal stability. Choosing the right material is essential for dimensional accuracy and mechanical performance.

3.Process Parameters – Temperature, injection speed, holding pressure, and cooling time must be carefully controlled. Automated machines often include sensors to monitor these variables in real-time.

4.Machine Condition – Precision, maintenance, and calibration of the injection molding machine affect consistency and part quality.

5.Operator Expertise – Skilled operators ensure proper setup, monitor production, and make adjustments to reduce defects and improve yield.

Every project comes with its own challenges. An experienced injection molding team knows how to navigate design complexities, optimize mold structures, and ensure smooth production from start to finish.

Precision and speed depend heavily on equipment. A provider with advanced molding machines can deliver tighter tolerances, faster turnaround times, and consistent quality across every batch.
